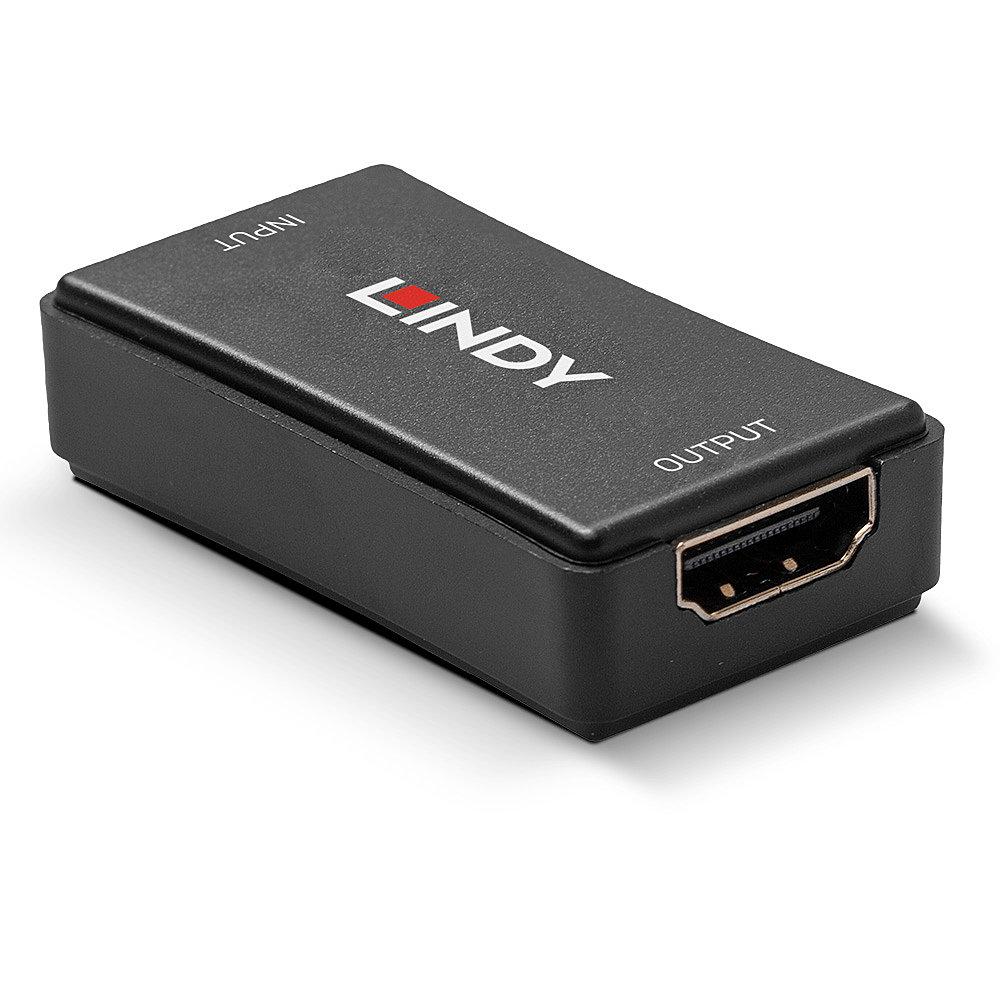

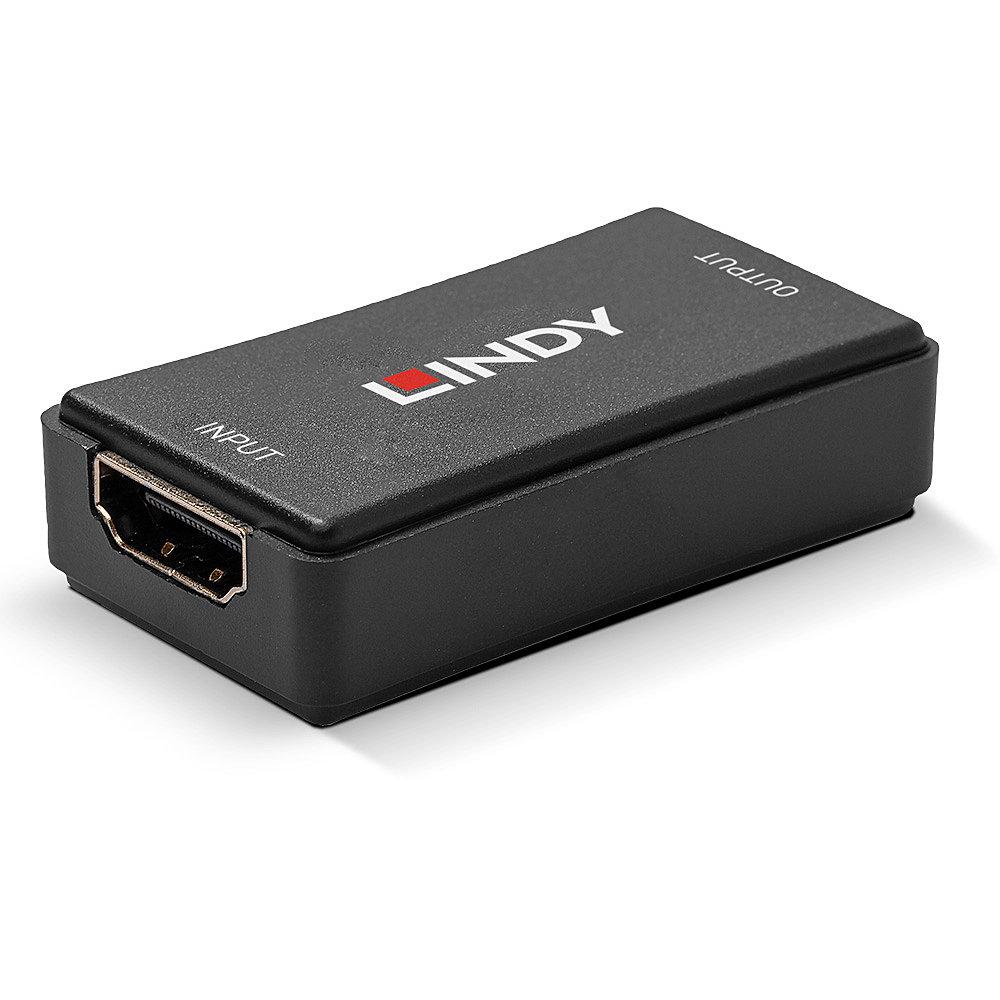

Extender HDMI 2.0 Lindy 50m 10.2G Repeater
Description

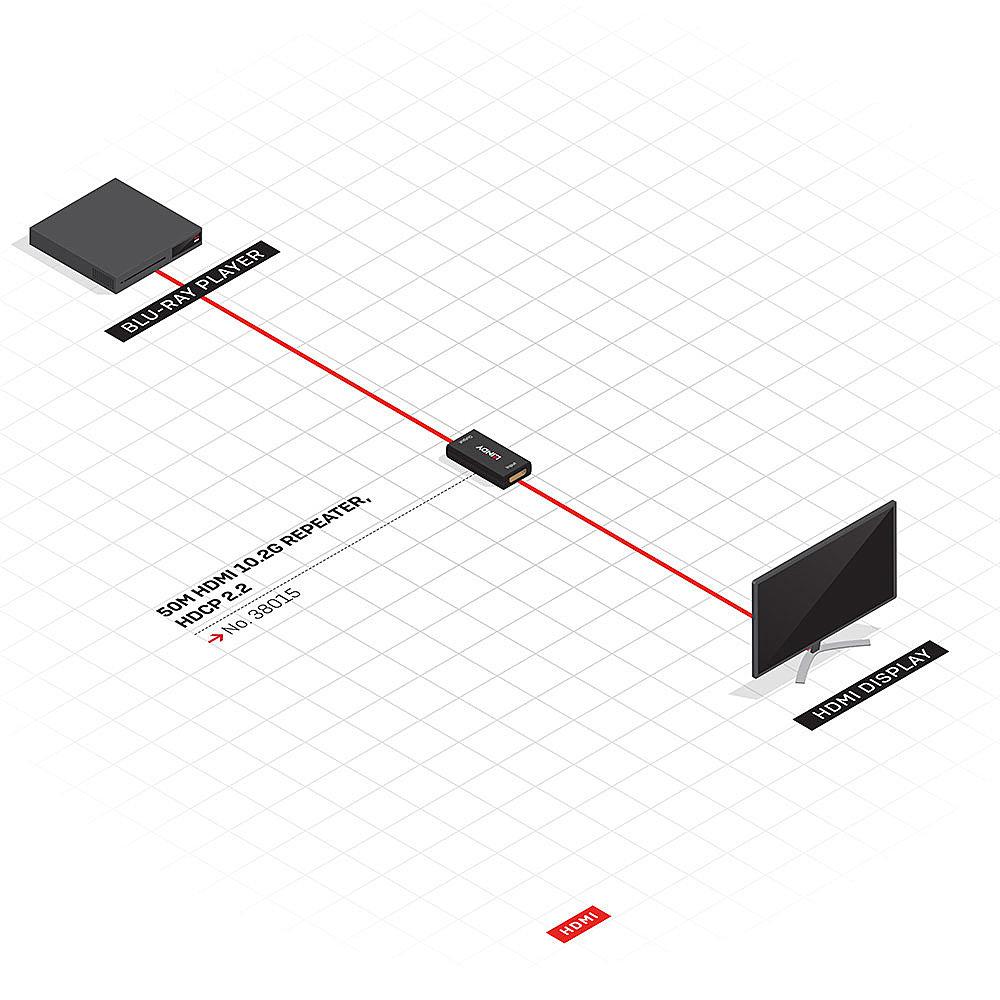

- Repeats HDMI signals over 50m - connects two HDMI cables together to make longer transmission distances
- Supports resolutions of 1920x1080p@60Hz over 50m and 3840x2160p@60Hz 4:2:0 over 35m
- Powered from the HDMI interface, no external power required
- HDCP Pass-through
Technical details
Specifications
- AV Interface: HDMI
- Interface Standard: HDMI 1.4
- Supported Bandwidth: 10.2 Gbps
- Maximum Distance:
- 35m (114.83ft) 3840x2160@60Hz 4:2:0 8bit
- 35m (114.83ft) 3840x2160@30Hz 4:4:4 8Bit
- 50m (164.04ft) 1920x1080@60Hz 4:4:4 8bit
- Maximum Input Distance:
- 15m (49.21ft) - 3840x2160@60Hz 4:2:0 8bit
- 15m (49.21ft) - 3840x2160@30Hz 4:4:4 8bit
- 20m (65.62ft) - 1920x1080@60Hz 4:4:4 8bit
- Maximum Output Distance:
- 20m (65.62ft) - 3840x2160@60Hz 4:2:0 8bit
- 20m (65.262t) - 3840x2160@30Hz 4:4:4 8bit
- 30m (98.42ft) - 1920x1080@60Hz 4:4:4 8bit
- Maximum Resolution: 3840x2160@60Hz 4:2:0 8bit
- HDCP Support: Pass-through
- Transmission Medium: 2 x HDMI Cable
- Special Features: -
Connectors
- Input: HDMI (Female)
- Output: HDMI (Female)
- Power: -
Physical Properties
- Dimensions WxHxD: 50x27x15mm (1.97x1.06x0.59in)
- Housing Material: ABS Plastic
- Net Weight: 0.015kg (0.03lb)
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 20-90% RH (non-condensing)
- Power Requirements: -
- Colour: Black
Miscellaneous
- Packaging Type: Carton box
- Packaging Dimensions: 115x76x31mm (4.53x2.99x1.22in)
- Gross Weight: 0.095kg (0.21lb)
- Warranty (Years): 2
- Certificated: CE, FCC, RoHS & REACH
Package Contents
- HDMI Repeater
- Lindy Manual
