CPU configuration (max)1
Embedded options availableNu
Execute Disable BitDa
Thermal Monitoring TechnologiesDa
Supported instruction setsSSE4.1, SSE4.2, AVX 2.0
Idle StatesDa
Use conditionsPC/Client/Tablet
Linii PCI Express (max)20
Versiune sloturi PCI Express5.0, 4.0
PCI Express configurations1x16+1x4, 2x8+1x4
Scalability1S
Direct Media Interface (DMI) Revision4.0
Market segmentDesktop
Export Control Classification Number (ECCN)5A992CN3
Commodity Classification Automated Tracking System (CCATS)G167599
Number of execution units24
Multi-Format Codec Engines1
On-board graphics card dynamic frequency (max)1450 MHz
On-board graphics card ID0x4692 / 0x4682
On-board graphics card outputs supportedEmbedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a, HDMI 2.1
On-board graphics card base frequency300 MHz
Number of displays supported (on-board graphics)4
On-board graphics card maximum resolution (DisplayPort)7680 x 4320 pixels
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)5120 x 3200 pixels
On-board graphics card maximum resolution (HDMI)4096 x 2160 pixels
On-board graphics card refresh rate at maximum resolution (DisplayPort)60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)120 Hz
On-board graphics card refresh rate at maximum resolution (HDMI)60 Hz
On-board graphics card modelIntel UHD Graphics 730
On-board graphics card DirectX version12.0
On-board graphics card OpenGL version4.5
Placă video integratăDa
Discrete graphics cardNu
Discrete graphics card modelIndisponibil
Cod vamal (HS)85423119
Memory bandwidth (max)76.8 GB/s
Canale memorieDual-channel
Non-ECCDa
Memorie suportată de procesorDDR4-SDRAM, DDR5-SDRAM
Maximum internal memory supported by processor128 GB
Tjunction100 °C
Maximum internal memory128 GB
Graphics outputeDP 1.4b, DP 1.4a, HDMI 2.1
Memory bandwidth supported by processor (max)76.8 GB/s
Processor codenameAlder Lake
Tip ambalajCutie
Performance-core boost frequency4.4 GHz
Processor ARK ID134586
Producător procesorIntel
Processor cache typeSmart Cache
Performance cores6
Bus typeDMI4
Fire de execuție12
Familie procesorIntel® Core™ i5
Cache procesor18 MB
Nuclee procesor6
Generație procesor12th gen Intel® Core™ i5
Frecvență boost procesor4.4 GHz
BoxDa

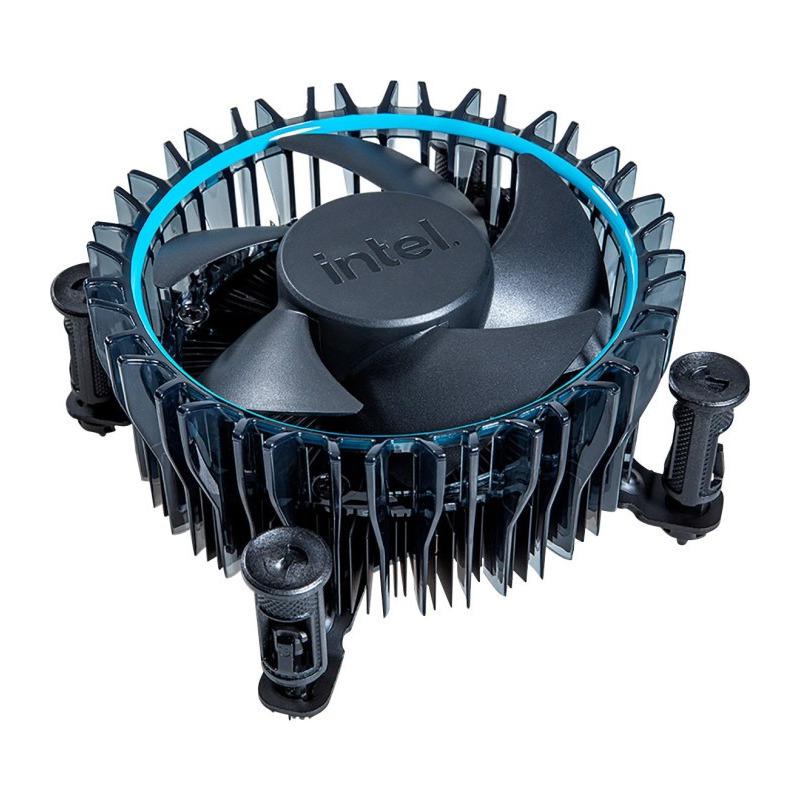

Cooler includedDa
Maximum number of DMI lanes8
Processor modeli5-12400
Maximum turbo power117 W
Efficient cores0
Socket procesorLGA 1700
Processor operating modes64-bit
Processor base power65 W
Performance-core base frequency2.5 GHz
Intel® Speed Shift TechnologyDa
Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0Da
Intel® Control-flow Enforcement Technology (CET)Da
Intel® Boot GuardDa
Intel® Deep Learning Boost (Intel® DL Boost) on CPUDa
Intel® Volume Management Device (VMD)Da
Mode-based Execute Control (MBE)Da
Intel® Standard Manageability (ISM)Da
Intel® Turbo Boost Technology2.0
Intel® Clear Video HD Technology (Intel® CVT HD)Da
Intel® Hyper Threading Technology (Intel® HT Technology)Da
Enhanced Intel SpeedStep TechnologyDa
Intel® Quick Sync Video TechnologyDa
Intel® AES New Instructions (Intel® AES-NI)Da
Intel® Secure KeyDa
Intel® OS GuardDa
Intel 64Da
Intel Virtualization Technology for Directed I/O (VT-d)Da
Intel Virtualization Technology (VT-x)Da
Intel VT-x with Extended Page Tables (EPT)Da
Intel® Thread DirectorNu
Intel Turbo Boost Max Technology 3.0Nu
Intel® Optane™ Memory ReadyDa
Intel® Threat Detection Technology (TDT)Da
OpenCL version2.1
Launch dateQ1'22
Target marketGaming
StatusLaunched
Processor package size45 x 37.5 mm
CPU-Socket1700
CPU-Cores6
CPU-VideoNu
